NAME

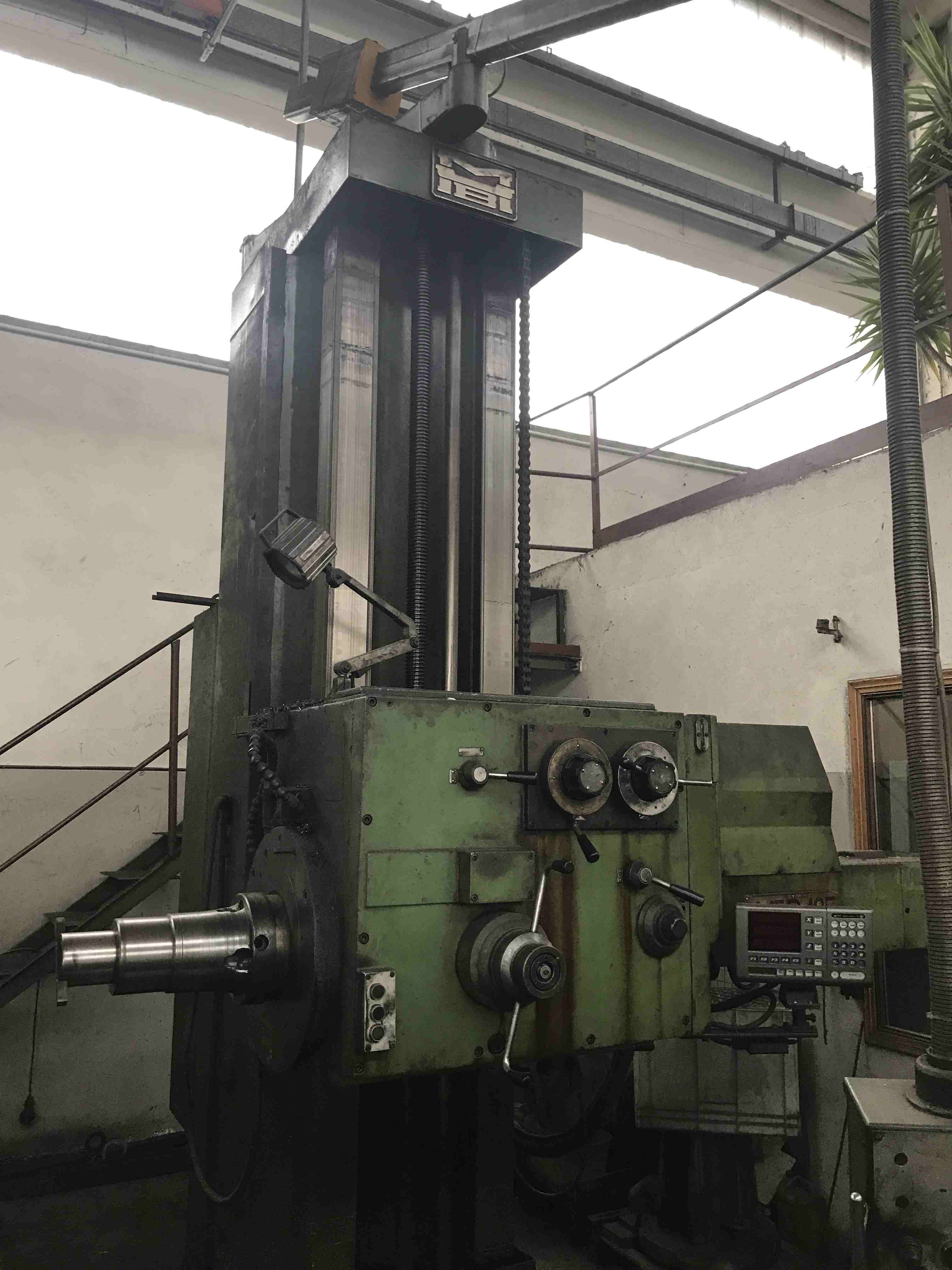

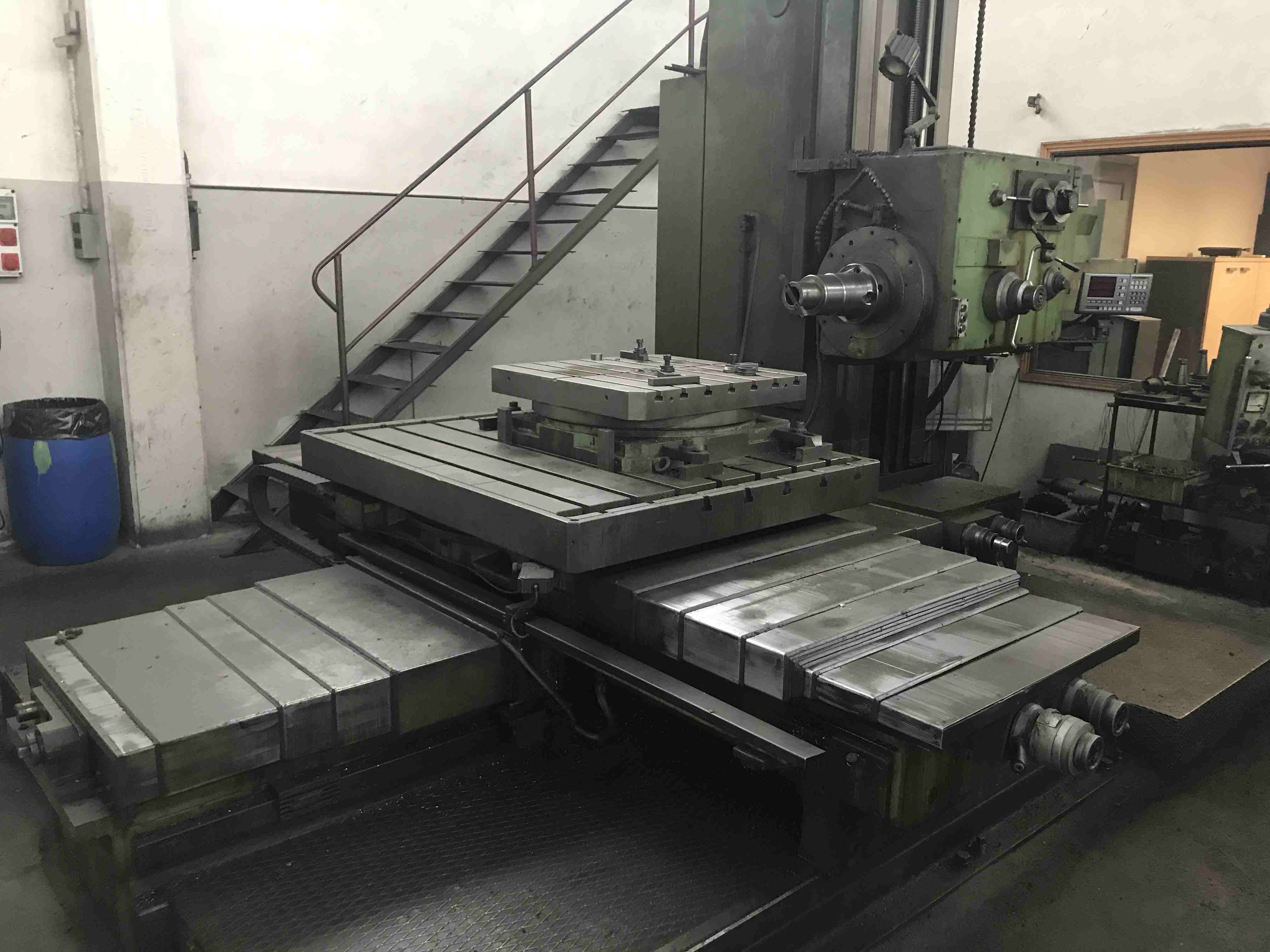

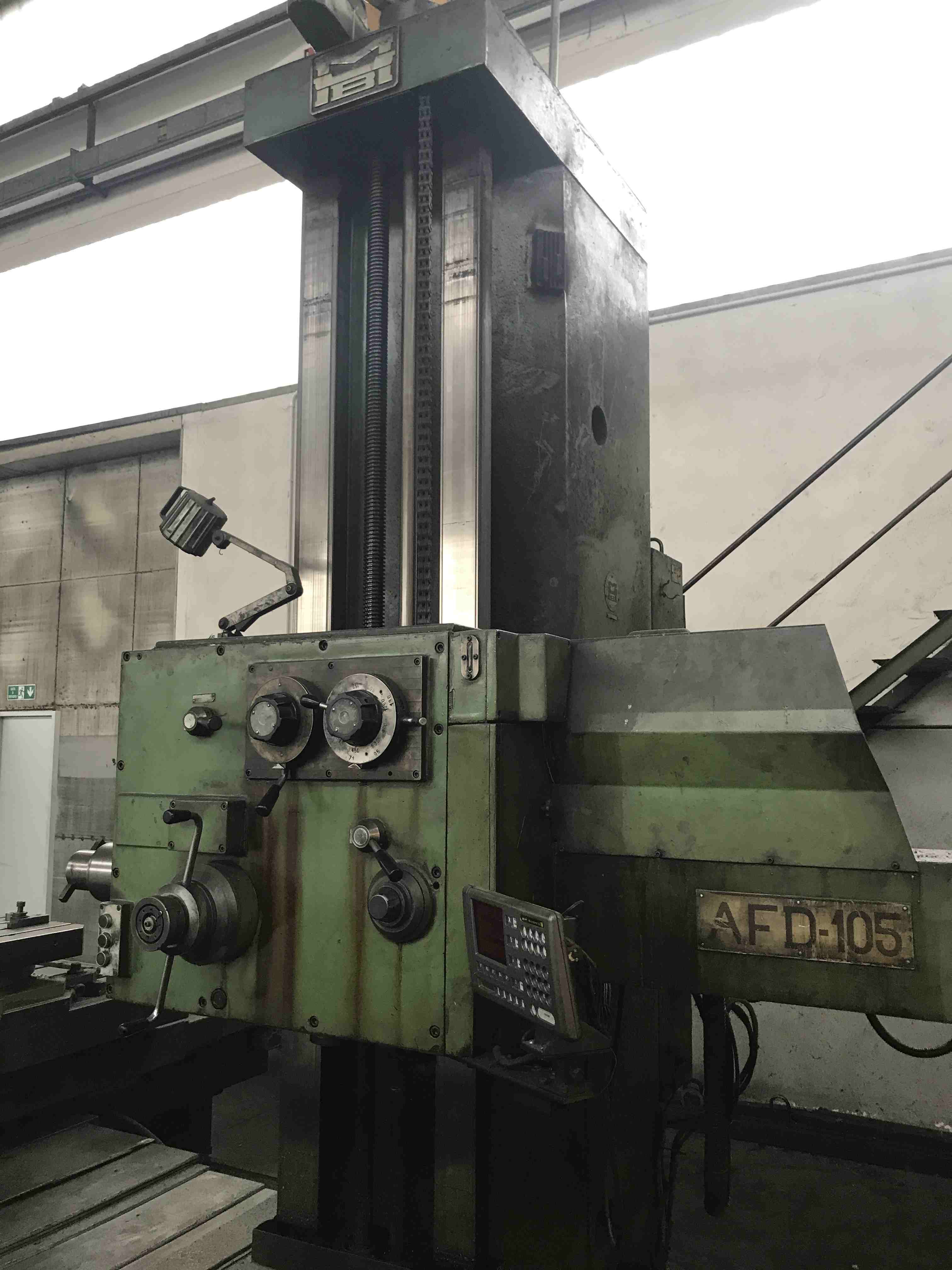

HORIZONTAL BORING MACHINE

ITEM NO.

503

MANUFACTURER

IMU –ROMANIA

MODEL / TYPE

AFD 105

YEAR OF MANUFACTURE

1980

CONTROL

CONVENTIONAL

MACHINE DESCRIPTION

SPINDLE DIAMETER

105 MM

TOOL TAPER

ISO 50

SPINDLE SPEED RANGE

1180 RPM

SPINDLE MOTOR

10 KW

X ( LONGITUDINAL TRAVEL )

1600MM

ASSE Y (VERTICAL HEAD TRAVEL)

1500 MM

ASSE Z (CROSS TRAVEL )

1200 MM

ASSE W (SPINDLE TRAVEL)

400 MM

TABLE SIZE

1220 X 1520 MM

WEIGHT APPROX.

15.8 TON

DIMENSIONS (L X W X H) APPROX.

5000 X 3800 X 3700 MM
